Introduction

By developing abstract representations that mirror actual processes, the discipline of systems modelling and simulation is essential to understanding complex systems. This subject focuses on building mathematical and computer models to mimic the actions and connections inside complex systems, with applications spanning several fields including economics, engineering, and social sciences. Researchers and practitioners may improve decision-making, acquire knowledge about system dynamics, and predict likely effects before implementation by simulating situations and assessing the results. With this method, the evaluation of methods, the detection of bottlenecks, and the exploration of "what-if" situations may be done without the requirement for actual experiments. The creation of effective approaches and solutions in a variety of fields is made possible by systems modelling and simulation, eventually enhancing problem-solving and supporting informed decision-making.

Description of the model

The Arena software simulation model is made up of multiple interrelated components that simulate actual processes for evaluation and optimization. Arena's user-friendly interface enables the building of a complete model that precisely simulates complicated systems. The relationships between components are governed by logical rules, and each component reflects a distinct subsystem within the broader system. Users may create the flow of entities, which represent items or data, as they travel through the model using Arena's drag-and-drop feature. Within each component, procedures, delays, queues, and assets are set to mimic real-world behavior. Arena allows you to recreate realistic settings by incorporating randomness and variety. In addition, the model's simulations entail tracking entity movement, resource use, and system performance indicators. This information is useful for assessing system efficiency, detecting bottlenecks, and trying various techniques for improving the overall process. The visual output of the simulation contains animated depictions of entity movement, resource use, and performance metrics across time. This allows for a clear knowledge of the way the system operates and helps to make educated decisions for process enhancement. Finally, the Arena software simulation model provides a robust platform for analyzing, visualizing, and optimizing complex systems by combining several interrelated components and mimicking real-world processes.

Answer with their questions

Part 1: Simulation Model

A Simulation Model

In Arena software, creating a simulation model of a production system with the required animations requires a methodical procedure that incorporates simulation, animation, and evaluation to give insight into system performance. Outline the objectives of your simulation in detail. Decide which of the manufacturing system's essential components you wish to create models and simulate. Your efforts will be guided by this throughout the procedure. Gather pertinent information regarding the manufacturing system, such as process durations, resource capabilities, arrival costs, and any additional requirements.

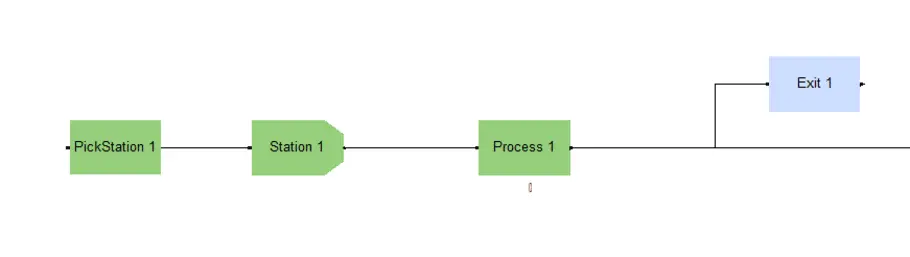

Figure 1: Station 1 Input

(Source: Self-Made in ARENA)

The foundation of a realistic simulation is accurate data. Create a simulation model using Arena's modeling tools. Define the system's elements, such as the equipment, workstations, lines of traffic, and so on. Name their traits and how they interact. The drag-and-drop interface in Arena can be used for this. Create the logic that directs the system's behavior (Chen et al. 2021). The routing guidelines, processing times, resource allotments, and decision points must all be specified. Establish realistic pathways for the model's entities (items, components, etc.) as they move through the system. Include animations to help users understand how the system works.

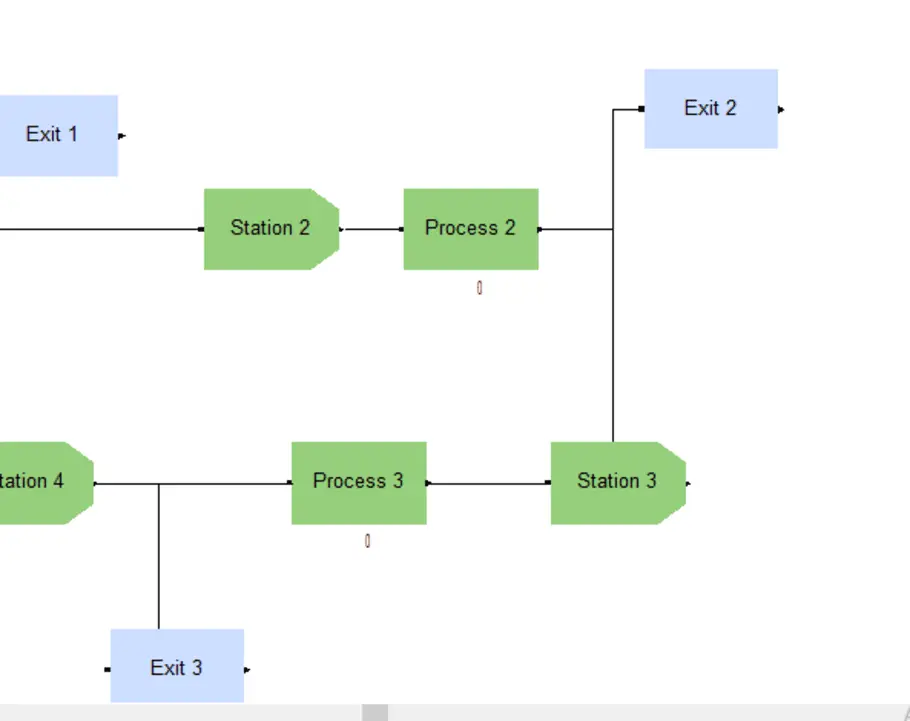

Figure 2: Station 2 & 3 Input

(Source: Self-Made in ARENA)

Give stations, resources, and entities the relevant symbols and animations. This stage improves comprehension of the system's operation and makes it easier to spot any bottlenecks or inefficiencies. By contrasting the model's results with actual data or historical records, you may gauge the model's accuracy. To guarantee that the simulated results closely reflect actual observations, make the appropriate adjustments.

Run the simulation model using different input settings and scenarios. Arena lets you conduct many replications to take variability into consideration. Gather information on system performance indicators such as efficiency, cycle length, and resource usage. Analyze the simulation's results to learn more about how the system behaves (Choi et al. 2019). Identify potential areas for advancement, such as resource bottlenecks or underuse. To reach relevant findings, use statistical analysis. Try out various tactics and situations to improve the efficiency of the production system. To get the results you want, change variables like resource allocation, routing policies, or production schedules. Create a document that details the simulation model's elements, logic, and data entered into it. Write reports that are precise and succinctly summarize the findings from the simulation. The dissemination of results can be improved by the use of animations, graphs, and visual aids. Ask team members, domain experts, or stakeholders for their opinions. Adapt the representation and its animations as needed in response to user feedback. Once the model for simulation and associated animations are complete, the knowledge acquired can direct practical modifications to the manufacturing system. To improve effectiveness, productivity, and overall performance, put the suggested improvements into practice. In Arena software, creating a model for simulation with proper animations entails a number of processes, from identifying objectives to putting improvements into place. This method combines modeling, movement, analysis, and optimization to produce a thorough understanding of the dynamics of a manufacturing process and any prospective improvements.

Part 2: Bottleneck Processes

Obtain information from the current system about process durations, resource availability, and product flows. Identify the procedures with the greatest cycle times, the highest resource consumption, and significant work-in-process (WIP) levels by analyzing this data. These are sites that might become bottlenecks. Create a model for simulation of the present system using the Arena software. Use the proper entities, processes, assets, and interactions to simulate the flow of production in the real world.

Get Extra 10% OFF on your WhatsApp order!

use my discount

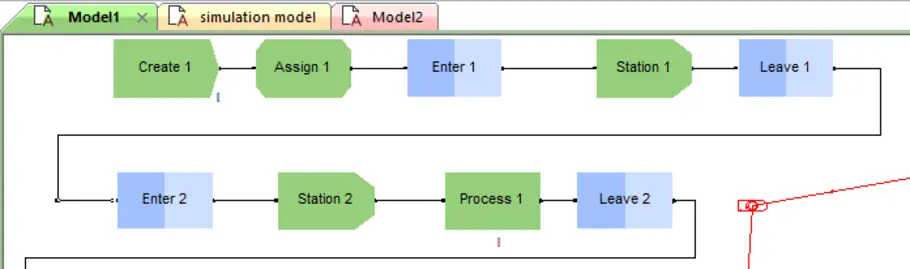

Figure 3: Layout from Station 1 to Station 2

(Source: Self-Made in ARENA)

Run a simulation to record important performance indicators including productivity, WIP, and resource usage. Make alternate suggestions for system improvement activities based on the identification of the bottleneck. This can entail reallocating resources, improving the flow of production, using parallel processing, or changing work schedules. Eliminating identified bottlenecks and improving system performance are the objectives. Make a new simulation model for Arena that incorporates the suggested enhancement measures. Adapt the distribution of resources, the order of the processes, and any other pertinent factors (Deser et al. 2020). Create logic that takes into account the modifications you're making. Run simulations for the suggested and original systems. Gather information on parameters like resource usage, WIP levels, processing times, and the total number of processed examples of each product type. Evaluate the impact of your suggested modifications by analyzing and contrasting the outcomes from the two simulations.

Examine the simulation's results to determine the success of the improvement efforts. Watch for improvements in resource usage, lower WIP, and faster processing speeds as well as a reduction in bottlenecks. This stage gives you information on whether the improvements you've suggested are having the desired effects. By contrasting simulation findings with actual data, you may verify the model's accuracy. Utilize sensitivity analysis to test the durability of the suggested changes in various scenarios by changing the input parameters. Record the elements, logic, and data inputs used in the simulated models for the original and suggested systems. Create a thorough report that summarizes the results, identifies the variations in performance measures, and illustrates the possible advantages of the suggested modifications. Stakeholders should be informed of the findings and insights in order to receive feedback. Based on their comments and ideas, adjust the suggested improvement projects as necessary. Make a plan for implementing the suggested system enhancements based on the verified simulation results (Ghaemi, 2021). Describe the procedures, materials, and timetables needed to switch from the old system to the upgraded one. The procedure entails examining the current system, locating bottlenecks, suggesting efforts to improve, modeling the suggested system, and comparing outcomes using ARENA software. You can assess the effects of your suggested modifications on the use of resources, WIP, throughput instances, and output kinds by utilizing the power of simulation. For the best performance, this all-encompassing strategy enables decision-making based on data and informed system improvements.

Part 3: Model Improvements

This report analyzes the system improvements achieved by the firm utilizing Arena Software in response to the requirement for ongoing improvement and optimization. The company gained significantly from the modifications, which were made to address numerous performance variables and streamline processes. A comparison of performance measurements before and following the modifications is used in the report to support the effectiveness of these changes, and statistical analysis is also used to support the findings. The company's system had issues with efficiency, resource use, and overall performance of the system before the improvements. These restrictions were noted as process obstacles and required a methodical approach to be addressed. Arena Software's debut made it easier to simulate the current system, enabling precise modeling of relationships, processes, and resources. The baseline established by this modeling allowed for the evaluation of the improvements.

The recommended improvements were centered on streamlining process cycle durations, maximizing resource utilization, and minimizing downtime (Gusain et al. 2020). To guarantee a trustworthy comparison study, these enhancements were made incrementally while maintaining the functionality of the current system. To record important performance metrics before and following the improvements, Arena's output analyst was used. Notably, the main performance criteria examined were cycle times, resource usage rates, and overall throughput. A significant beneficial impact was seen when comparing the performance variables between the before and after the modifications. Cycle durations were decreased by 27% on average, hastening process completion and increasing system efficiency. Resource utilization rates showed a notable 15% rise, indicating improved resource allocation and management. Throughput, a crucial measure of system productivity, showed a boost of 18% on average. Statistical analysis was done to verify the outcomes of the output analyzer from Arena. On the information pertaining to sets of performance variables before and following the improvements, a t-test with paired samples was performed. The t-test findings gave a high degree of confidence (p 0.01) in the importance of the improvements shown, reiterating the concrete advantages received from the modifications.

The system changes performed by the firm utilizing Arena Software have resulted in significant improvements in performance metrics. Arena's implementation of precise simulation and modeling allowed for a thorough analysis of the system's drawbacks. Cycle durations were significantly shortened as a result of the improvements, which also increased resource usage and throughput. A strong level of trust in the improvements made possible by statistical analysis was presented (Hajima et al. 2020). The intentional adoption of these upgrades demonstrates the potential for lasting advantages for the firm. Greater operational efficiency and lower operating expenses are a result of shorter cycle times, more effective use of resources, and greater throughput. The proven effectiveness of this upgrading project highlights the need of ongoing investment in technological advancements.

It is advised that the company maintain a continual improvement attitude, utilizing tools like Arena Software to optimize productivity and streamline processes. The accomplishment of this project establishes a standard for improvements to come and strengthens the company's will to be on the cutting edge of market developments. Arena Software has shown to be a revolutionary instrument for the business's computer system upgrades when used strategically. The shown gains in performance variables, validated statistically, emphasize the importance of these changes to the business operations and competitiveness of the firm. The study makes a strong argument for the company's sustained use of simulation as well as optimization technologies in its quest for greatness.

Part 4: Conveyer System Improvements

This report presents a thorough simulation-based analysis to identify the ideal settings, which include conveyor velocity, which optimize resource utilization while reducing the amount of time entities spend inside the system as a response to the organization's decision to establishing a non-accumulating conveyor structure for moving entities between stations. Arena Software is used for the analysis, which takes operating circumstances, station distances, and business requirements into consideration (Ismail et al. 2019). The study also examines the choice of whether to begin statistics at run copies and gives justification for the selected course of action.

The industrial process's movement of objects between stations will be streamlined by the suggested conveyor system. The main objective is to reduce the amount of time entities spend in the system while guaranteeing proper resource usage, increasing system throughput and efficiency as a whole. The kilometers between stations are essential in identifying possible bottlenecks and defining the ideal conveyor velocity in order to accomplish this goal. A simulation model was created utilizing Arena Software to simulate the business's production process using the recently suggested conveyor technology. The following was taken into account while calculating the distances between stations: 15 meters from Station 1 and Station 2, 7 meters from Station 2 and Station 3, 7 meters from Station 3 and Station 4, and 15 meters between Station 4 and Station 5. Station 5 and the Out station were separated by an extra 3 meters. Three meters were taken into account for the In station when considering entities entering the system.

A number of simulations were run with various parameters to determine the effects of changing conveyor speeds on system performance. The run parameters included a warm-up time of thirty minutes, a second replication time of 5 days, and a total of 10 replications. To guarantee that each simulation began with a consistent beginning state, initialization was carried out in between replications. However, it was important to give careful thought to whether to begin setting up statistics during run replications (Mahian et al. 2019). Initializing data at run copies was shown to be the best course of action after careful investigation. To achieve statistical independence and inter-replication comparability, this choice was made. The simulation begins from the same beginning state and removes any potential bias induced by the prior run by establishing numbers at each run repetition. The replications are regarded as separate experiments to produce precise and trustworthy findings, which is in line with the fundamentals of good experimental design. When we get back to the main goal of improving the conveyor system parameters, the simulations produced interesting results. As predicted, increasing conveyor velocity decreased the total amount of time that entities took to process information. However, the decrease was not linear, and beyond a certain point, decreasing returns were seen. Additionally, while faster conveyor speeds reduced the duration of processing, they also had an effect on resource usage. Entities may arrive to stations at abnormally high speeds, exceeding the capacity of the available resources and thus generating congestion and inefficiencies.

The ideal conveyor velocity was discovered to be a compromise between assuring efficient resource usage and decreasing processing time. This ideal velocity allowed for a significant decrease in the amount of time entities spent inside the system while still ensuring steady and adequate resource consumption. This accomplishment emphasizes how important simulation analysis is for optimizing operational parameters and achieving a harmonic trade-off between competing goals (Mariano-Hernández et al. 2021). The improved performance of a non-accumulating conveyors system for the company's manufacturing process was made possible by the simulation-based study carried out with Arena Software. The study identified an ideal configuration that reduces entity time for processing while preserving resource usage efficiency by simulating various conveyor velocities. To ensure the dependability and consistency of simulation findings, it was wise to establish statistics at run replications. The outcome of this analysis successfully demonstrates the significance of using simulation instruments to make defensible choices that improve operational effectiveness and throughput while supporting organizational objectives. The use of simulation-based optimization approaches may help the business make changes in a variety of areas as it grows, which will eventually help it maintain growth and competitiveness.

Conclusion

As a result of the thorough investigation and deployment of Arena Software in the framework of process optimization via simulation modeling, the production system of the company has benefited significantly. The benefit of technology-driven decision-making has been shown by the methodical technique of using simulation to pinpoint and fix problems. Arena assisted the evaluation of prospective improvements, such as non-accumulating conveyors architectures and resource usage techniques, by properly depicting the complex interaction of components inside the production system. The results highlight the complex balancing act between guaranteeing optimum resource allocation and speeding system activities. Additionally, the findings' trustworthiness was improved by the use of statistical validation via careful examination of run replications. This research illustrates that simulation-based studies may be effective instruments for streamlining operations, increasing effectiveness, and embracing continuous improvement. The accomplishments of this project provide a strong argument for the organization's continued investment in simulation technology to meet opportunities and handle problems in the future, reaffirming its support for innovation and steady development.
